Carbide Straight Edge Corner Angle End Mill, 2-flute / Angle Width Specification Type

Carbide Straight Edge Corner Angle End Mill, 2-flute / Angle Width Specification Type

Click this image to zoom it.

Move the mouse over the image to zoom

MISUMI

MISUMI

[Features]
·No drawings required, easy ordering with part number
·Cutter diameter (D) 0.01 mm unit can be specified
·Single angle (θ) 1′ units can be specified
·Angle width (D1) 0.01 mm units can be specified
[Applications]
·Supports boss hole drilling with tip guide
·Standard corner angle shape
[Delivery date]
·Shipped on the 3rd working day of the manufacturer's calendar after order. A Stork possible quick delivery

Part Number

Configured Part Number is shown.

Carbide Straight Blade Corner Angle End Mill, 2-Flute, Angular Width Designation Type:Related Image
30
45
60
  1. 1
Part Number

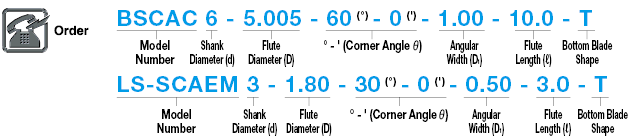

BSCAC3-[0.4-3/0.005]-[5-85/1]-[0-59/1]-[0.1-1.4/0.01]-[0.5-15/0.5]-[F,​T]
BSCAC4-[2.005-4/0.005]-[5-85/1]-[0-59/1]-[0.1-1.9/0.01]-[0.5-20/0.5]-[F,​T]
BSCAC6-[3.005-6/0.005]-[5-85/1]-[0-59/1]-[0.1-2.9/0.01]-[3-24/0.5]-[F,​T]
BSCAC8-[4.005-8/0.005]-[5-85/1]-[0-59/1]-[0.1-3.9/0.01]-[4-28/0.5]-[F,​T]
BSCAC10-[6.005-10/0.005]-[5-85/1]-[0-59/1]-[0.1-4.9/0.01]-[5-35/0.5]-[F,​T]
BSCAC12-[8.005-12/0.005]-[5-85/1]-[0-59/1]-[0.1-5.9/0.01]-[6-36/0.5]-[F,​T]
BSCAC16-[10.005-16/0.005]-[5-85/1]-[0-59/1]-[0.1-7.9/0.01]-[8-48/0.5]-[F,​T]
LS-BSCAC3-[0.4-3/0.005]-[5-85/1]-[0-59/1]-[0.1-1.4/0.01]-[0.5-15/0.5]-[F,​T]
LS-BSCAC4-[2.005-4/0.005]-[5-85/1]-[0-59/1]-[0.1-1.9/0.01]-[0.5-20/0.5]-[F,​T]
LS-BSCAC6-[3.005-6/0.005]-[5-85/1]-[0-59/1]-[0.1-2.9/0.01]-[3-24/0.5]-[F,​T]
LS-BSCAC8-[4.005-8/0.005]-[5-85/1]-[0-59/1]-[0.1-3.9/0.01]-[4-28/0.5]-[F,​T]
LS-BSCAC10-[6.005-10/0.005]-[5-85/1]-[0-59/1]-[0.1-4.9/0.01]-[5-35/0.5]-[F,​T]
LS-BSCAC12-[8.005-12/0.005]-[5-85/1]-[0-59/1]-[0.1-5.9/0.01]-[6-36/0.5]-[F,​T]
LS-SCAEM3-[0.4-3/0.01]-[5-85/1]-[0-59/1]-[0.1-1.4/0.01]-[0.5-15/0.5]-[F,​T]
LS-SCAEM4-[2.01-4/0.01]-[5-85/1]-[0-59/1]-[0.1-1.9/0.01]-[0.5-20/0.5]-[F,​T]
LS-SCAEM6-[3.01-6/0.01]-[5-85/1]-[0-59/1]-[0.1-2.9/0.01]-[3-24/0.5]-[F,​T]
LS-SCAEM8-[4.01-8/0.01]-[5-85/1]-[0-59/1]-[0.1-3.9/0.01]-[4-28/0.5]-[F,​T]
LS-SCAEM10-[6.01-10/0.01]-[5-85/1]-[0-59/1]-[0.1-4.9/0.01]-[5-35/0.5]-[F,​T]
LS-SCAEM12-[8.01-12/0.01]-[5-85/1]-[0-59/1]-[0.1-5.9/0.01]-[6-36/0.5]-[F,​T]
SCAEM3-[0.4-3/0.01]-[5-85/1]-[0-59/1]-[0.1-1.4/0.01]-[0.5-15/0.5]-[F,​T]
SCAEM4-[2.01-4/0.01]-[5-85/1]-[0-59/1]-[0.1-1.9/0.01]-[0.5-20/0.5]-[F,​T]
SCAEM6-[3.01-6/0.01]-[5-85/1]-[0-59/1]-[0.1-2.9/0.01]-[3-24/0.5]-[F,​T]
SCAEM8-[4.01-8/0.01]-[5-85/1]-[0-59/1]-[0.1-3.9/0.01]-[4-28/0.5]-[F,​T]
SCAEM10-[6.01-10/0.01]-[5-85/1]-[0-59/1]-[0.1-4.9/0.01]-[5-35/0.5]-[F,​T]
SCAEM12-[8.01-12/0.01]-[5-85/1]-[0-59/1]-[0.1-5.9/0.01]-[6-36/0.5]-[F,​T]
SCAEM16-[10.01-16/0.01]-[5-85/1]-[0-59/1]-[0.1-7.9/0.01]-[8-48/0.5]-[F,​T]
Part NumberStandard Unit PriceMinimum order quantityVolume DiscountDays to ShipShank Diameter d
(mm) 		Overall Length L
(mm) 		Processing Applications Use

-

1 Piece(s) 7 Day(s) or more 340Boss Hole DrillingFor Boss Hole Drilling

-

1 Piece(s) 7 Day(s) or more 450Boss Hole DrillingFor Boss Hole Drilling

-

1 Piece(s) 6 Day(s) or more 660Boss Hole DrillingFor Boss Hole Drilling

-

1 Piece(s) 6 Day(s) or more 860Boss Hole DrillingFor Boss Hole Drilling

-

1 Piece(s) 6 Day(s) or more 1080Boss Hole DrillingFor Boss Hole Drilling

-

1 Piece(s) 6 Day(s) or more 1280Boss Hole DrillingFor Boss Hole Drilling

-

1 Piece(s) 6 Day(s) or more 16100Boss Hole DrillingFor Boss Hole Drilling

-

1 Piece(s) 7 Day(s) or more 360Boss Hole DrillingFor Boss Hole Drilling

-

1 Piece(s) 7 Day(s) or more 480Boss Hole DrillingFor Boss Hole Drilling

-

1 Piece(s) 6 Day(s) or more 690Boss Hole DrillingFor Boss Hole Drilling

-

1 Piece(s) 6 Day(s) or more 890Boss Hole DrillingFor Boss Hole Drilling

-

1 Piece(s) 6 Day(s) or more 10120Boss Hole DrillingFor Boss Hole Drilling

-

1 Piece(s) 6 Day(s) or more 12120Boss Hole DrillingFor Boss Hole Drilling

-

1 Piece(s) 7 Day(s) or more 360Flank / Groove ProcessingFor Radial Groove Milling

-

1 Piece(s) 7 Day(s) or more 480Flank / Groove ProcessingFor Radial Groove Milling

-

1 Piece(s) 6 Day(s) or more 690Flank / Groove ProcessingFor Radial Groove Milling

-

1 Piece(s) 6 Day(s) or more 890Flank / Groove ProcessingFor Radial Groove Milling

-

1 Piece(s) 6 Day(s) or more 10120Flank / Groove ProcessingFor Radial Groove Milling

-

1 Piece(s) 6 Day(s) or more 12120Flank / Groove ProcessingFor Radial Groove Milling

-

1 Piece(s) 7 Day(s) or more 340Flank / Groove ProcessingFor Radial Groove Milling

-

1 Piece(s) 7 Day(s) or more 450Flank / Groove ProcessingFor Radial Groove Milling

-

1 Piece(s) 6 Day(s) or more 660Flank / Groove ProcessingFor Radial Groove Milling

-

1 Piece(s) 6 Day(s) or more 860Flank / Groove ProcessingFor Radial Groove Milling

-

1 Piece(s) 6 Day(s) or more 1080Flank / Groove ProcessingFor Radial Groove Milling

-

1 Piece(s) 6 Day(s) or more 1280Flank / Groove ProcessingFor Radial Groove Milling

-

1 Piece(s) 6 Day(s) or more 16100Flank / Groove ProcessingFor Radial Groove Milling

Loading...

  1. 1

Specifications

Carbide Straight Blade Corner Angle End Mill, 2-Flute, Angular Width Designation Type:Related Image

[ ! ]Even if dimensions within the specifiable range are specified, depending on the combination of each dimension some products may be unable to be manufactured.

Model Number   Flute Diameter
D
0.005 mm Increment Designation		 Corner Angle (Single Angle)
θ
° - '
1' Increment Designation		 Angular Width
D1
0.01 mm Increment Designation		 Blade Length
ℓ
0.5 mm Increment Designation		 Bottom Blade Shape
(Selection)		 Overall Length
L
Shank Diameter
d
BSCAC LS-BSCAC
BSCAC

LS-BSCAC
(Long Shank)		 3 0.400 ~ 1.500 5° 0' ~ 85° 0' 0.10 ≤ D1 ≤ (D - 0.2) / 2 0.5 ~5.0 T
(Dished)

F
(Flat)
Bottom Blade Shape >>P.608		 40 60
1.505 ~ 2.000 0.5 ~ 10.0 40 60
2.005 ~ 3.000 0.5 ~ 15.0 40 60
4 2.005 ~ 4.000 0.5 ~ 20.0 50 80
6 3.005 ~ 6.000 3.0 ~ 24.0 60 90
8 4.005 ~ 8.000 4.0 ~ 28.0 60 90
10 6.005 ~ 10.000 5.0 ~ 35.0 80 120
12 8.005 ~ 12.000 6.0 ~ 36.0 80 120
16 10.005 ~ 16.000 8.0 ~ 48.0 100 -



Model Number   Flute Diameter
D
0.01 mm Increment Designation		 Corner Angle (Single Angle)
θ
° - '
1' Increment Designation		 Angular Width
D1
0.01 mm Increment Designation		 Blade Length
ℓ
0.5 mm Increment Designation		 Bottom Blade Shape
(Selection)		 Overall Length
L
Shank Diameter
d
SCAEM LS-SCAEM
SCAEM

LS-SCAEM
(Long Shank)		 3 0.40 ~ 1.50 5° 0' ~ 85° 0' 0.10 ≤ D1 ≤ (D - 0.2) / 2 0.5 ~ 5.0 T
(Dished)

F
(Flat)
Bottom Blade Shape >>P.608		 40 60
1.51 ~ 2.00 0.5 ~ 10.0 40 60
2.01 ~ 3.00 0.5 ~ 15.0 40 60
4 2.01 ~ 4.00 0.5 ~ 20.0 50 80
6 3.01 ~ 6.00 3.0 ~ 24.0 60 90
8 4.01 ~ 8.00 4.0 ~ 28.0 60 90
10 6.01 ~ 10.00 5.0 ~ 35.0 80 120
12 8.01 ~ 12.00 6.0 ~ 36.0 80 120
16 10.01 ~ 16.00 8.0 ~ 48.0 100 -

Alterations

Carbide Straight Blade Corner Angle End Mill, 2-Flute, Angular Width Designation Type:Related Image

Basic Information

Material Ultrafine Particulate Carbide

Configure

Clear All

26 Part Numbers

View Part Numbers

Configure Remaining Specifications
